***Compatible with goggles: Fatshark Aviator 5.8Ghz, Attitude, Dominator in 5.8Ghz and Predator.***
***Compatible with receiver: Airwave, Uno and DUO from ImmersionRC***

This is a FPV RC Mini 5.8GHz 6000mW wireless AV transmitter and receiver combo set, 9 CH, high power transmitter,long distance transmission. Good device for FPV use.

New function Switching the video channel ON FLIGHT. Useful if you suddenly find a interference from another transmitter on the same channel.

TX with integrated Heat Sink & Fan Cooling.

Fully compatible with 2.4GHz R/C radios!

You can get 3 km range without any problem and more than 14 Km. range with optional Patch 18dbi 5.8Ghz

USED: FPV Planes, FPV Multicopter, Multicopter Movie, Long distance.



Specifications

Transmitter 600mW 5,8Ghz
• Dimension: 45*27*18mm
• Weight: 35 gr.
• Channel Swiching ON FLIGHT: YES
• Working Voltage: DC12V
• Working Current: 400mA
• Refrigeration: Heat Sing & Fan Cooling.
• Working Frequency: 5.8G
• Digital Display

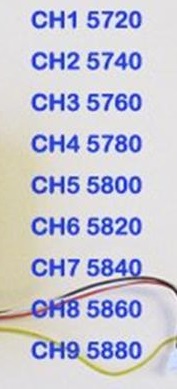

• Working Channels: 9CH 1): 5720Mhz 2): 5740Mhz 3): 5760Mhz 4): 5780Mhz 5): 5800Mhz 6): 5820Mhz 7): 5840Mhz 8): 5860Mhz 9): 5880Mhz
• Working Power: 600mW
• Transmitting Range: 2000m - 2500m (In Open Fields)

Receiver:
• Dimension: 72*43*11mm
• Working Voltage: DC12V
• Working Current: 200mA
• Working Frequency:5.8G
• Digital Display
• Working Channels: 9CH 1): 5720Mhz 2): 5740Mhz 3): 5760Mhz 4): 5780Mhz 5): 5800Mhz 6): 5820Mhz 7): 5840Mhz 8): 5860Mhz 9): 5880Mhz





INCLUDE:

•1x Transmitter 5.8Ghz 600mW
•1x Receiver
•2x Antenna Cloverfeaft 3dBi
•2x Cable
•2x Connector
•2x AV cable
•1x Manual

OPTIONAL: EASY FPV BOARD
